Piezo 60w 68k Ultrasonic Cleaning Transducer
electric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Naming methods as following
| Type | Length(mm) | Weight (g) | Frequency(KHz)±4% | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
| CCH-7145D-20LA PZT-8 | 94 | 900 | 20 | ≤20 | 5200 | 100 |
| CCH-6645D-25LB PZT-4 | 77 | 717 | 25 | ≤20 | 6800 | 100 |
| CCH-6650D-28LB PZT-4 | 69 | 746 | 28 | ≤20 | 7900 | 120 |
| CCH-6645D-28LB PZT-8 | 66 | 625 | 28 | ≤20 | 5200 | 100 |
| CCH-6645D-28LB PZT-4 | 66 | 614 | 28 | ≤20 | 6800 | 100 |
| CCH-6645D-30L PZT-8 | 64 | 551 | 30 | ≤20 | 5200 | 100 |
| CCH-5938D-25LB PZT-4 | 77 | 530 | 25 | ≤20 | 4900 | 60 |
| CCH-5938D-28LB PZT-8 | 68 | 470 | 28 | ≤20 | 3700 | 60 |
| CCH-4535D-28ZB PZT-4 | 73 | 407 | 28 | ≤20 | 3950 | 50 |
| CCH-4838D-33LB PZT-8 | 62 | 420 | 33 | ≤20 | 4700 | 60 |
| CCH-4938D-40LA PZT-8 | 55 | 307 | 40 | ≤20 | 3700 | 60 |
| CCH-4538D-40ZB PZT-4 | 57 | 301 | 40 | ≤20 | 4700 | 60 |
| CCH-4535D-40LB PZT-4 | 48 | 254 | 40 | ≤20 | 4300 | 50 |
| CCH-4535D-40ZB PZT-4 | 53 | 234 | 40 | ≤20 | 4200 | 50 |
| CCH-3830D-54LA PZT-4 | 36 | 132 | 54 | ≤20 | 3500 | 35 |
| CCH-4938D-70ZB PZT-8 | 80 | 468 | 70 | ≤20 | 5000 | 60 |
| CCH-4038D-82ZB PZT-4 | 62 | 316 | 82 | ≤20 | 4900 | 60 |
| CCH-3938D-100ZB PZT-4 | 53 | 289 | 100 | ≤20 | 4600 | 40 |
| CCH-3938D-124ZB PZT-4 | 59 | 365 | 124 | ≤20 | 5200 | 60 |
| CCH-3735D-133ZBL PZT-4 | 54 | 215 | 133 | ≤20 | 3900 | 50 |
| CCH-4535-170ZB PZT-4 | 55 | 238 | 170 | ≤50 | 4200 | 50 |
| CCH-3130D-200LB PZT-4 | 42 | 126 | 200 | ≤50 | 3200 | 30 |
Piez
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Product Tags:
|
|

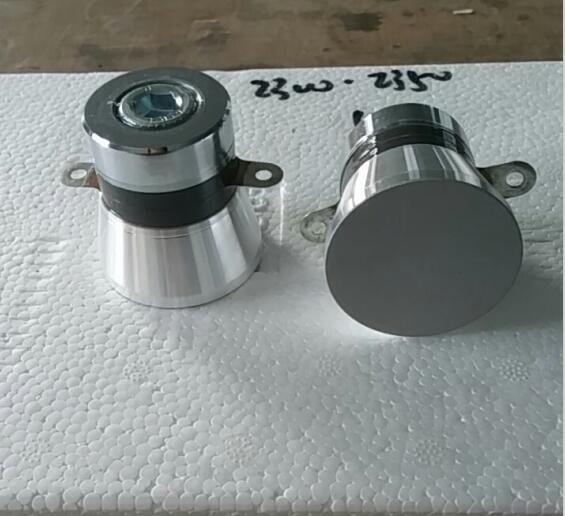

Piezo 60w 68k Ultrasonic Cleaning Transducer Images
|
