20 Khz 100w Ultrasonic Transducer and power supply generator
Quick Detail
20khz 100w ultrasonic cleaning transducer:
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Applications
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Naming methods as following:
Specifications

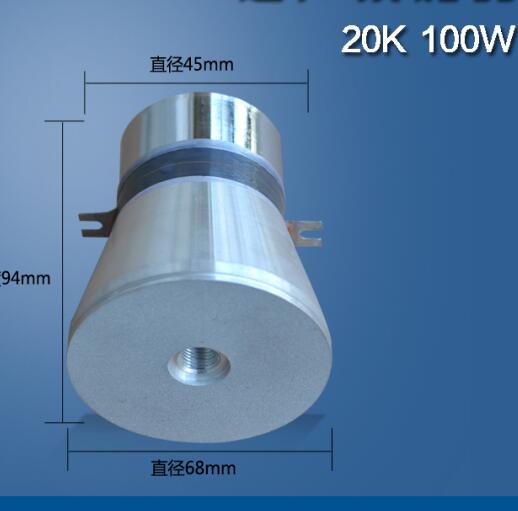

20khz100w ultrasonic cleaning transducer:
| Type | Length (mm) | Weigh (g) | Frequency (KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power (W) |
| CCH-6845D-20LA PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
